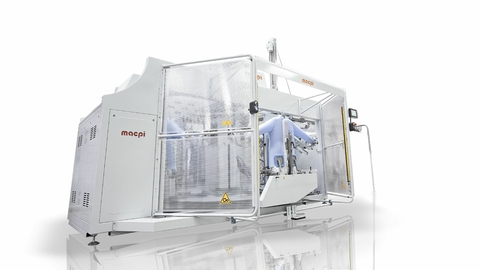

AUTOMATIC UNIT FOR IRONING SHIRTS

Carousel with 4 stations for ironing damp shirts

The machine is complete with 4 mannequins positioned on a rotating table with 4 stations, one of which is for loading the garments, while the last is complete with automatic unloading of the garments.

Technical features:

– 4 work stations:

a) Charging: full suction charging station in the central area

b) Steaming and blowing station

c) Blowing station

d) Blowing station with automatic unloading

* Blowing is also in operation during the rotation phases

* Pedal controls on the charging station to activate each function in sequence

* Button to start the work cycle, emergency, reset errors, cancel last operation

* 4 unisex model mannequins

* 2 clamps to lock the cuffs of long-sleeved shirts and 2 clamps for short-sleeved shirts with automatic adjustable tension system

* Safety barriers

* Electrically heated central blade to allow drying and with the possibility of adjusting the pressure

* Automatic loading of the hanger on the mannequins, complete with motorized continuous screw feeder

* Built-in 3 Hp 2.2kw vacuum cleaner

* 2 blower motors of 3HP 2.2 Kw each

* Heat exchanger for air blown heating with temperature control

* NX7 touch screen programmer

* vaporization time adjustment

* blowing time adjustment
